History
ShoreConnection has provided Helideck Monitoring Systems on hundreds of ships and platforms worldwide.
We are a long established, trusted supplier providing detailed quality Meteorological and Motion data inside a modern user-friendly graphical interface.
Such information is of key importance to providing safe helicopter transfers from vessels or fixed structures as well as other weather dependent offshore operations. Our products can be easily upgraded and expanded to meet any forthcoming future regulatory requirements.
We offer friendly and prompt global service and support to our customers.
Helideck Monitoring System Features
- Standard HMS rev 9c Pre-Landing HMS and On-deck HMS Displays
- On deck mounted HMS-Repeater Light System (RLS)
- Status Light activated interlock
- HMS Displays for NORMAM-27, NCS 9.2 and HCA 8c
- Extended Meteorological Data Displays
- 12 months Recording/Playback, data export to third party systems and HELIMET
- Cloud Ceilometer Display
- Present Weather & Visibility Display
- HMS Web-view
- Pre-flight Offshore Weather Report / Helideck Report
- Optional Helideck/ Weather observation Camera
- Optional Helideck Audio & Video RAID1 Redundant Recording (HAV-200)
- Optional Marine Weather Station display
- Optional Wave/ Current/ Sea sensors
- Optional Thunderstorm Detector

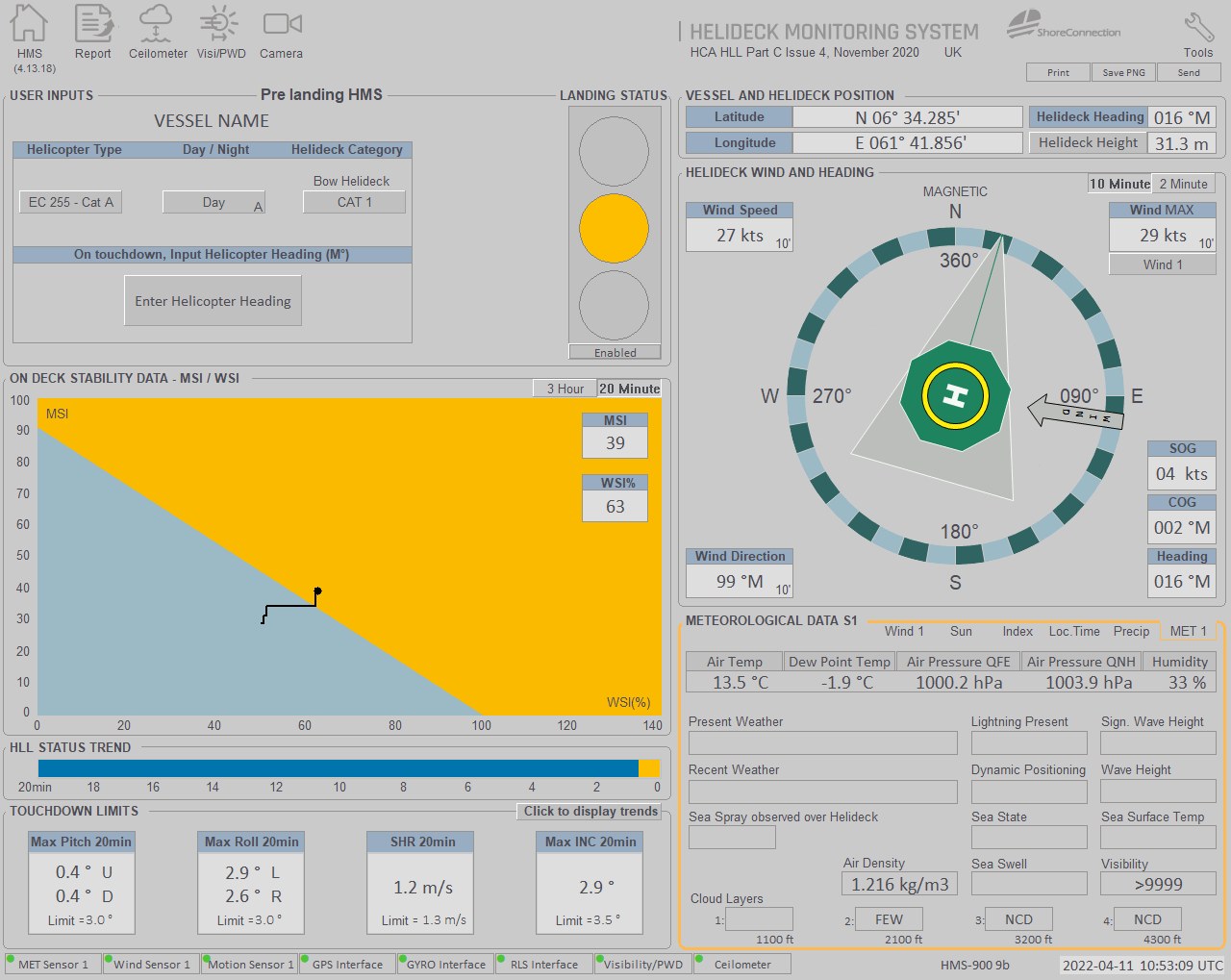

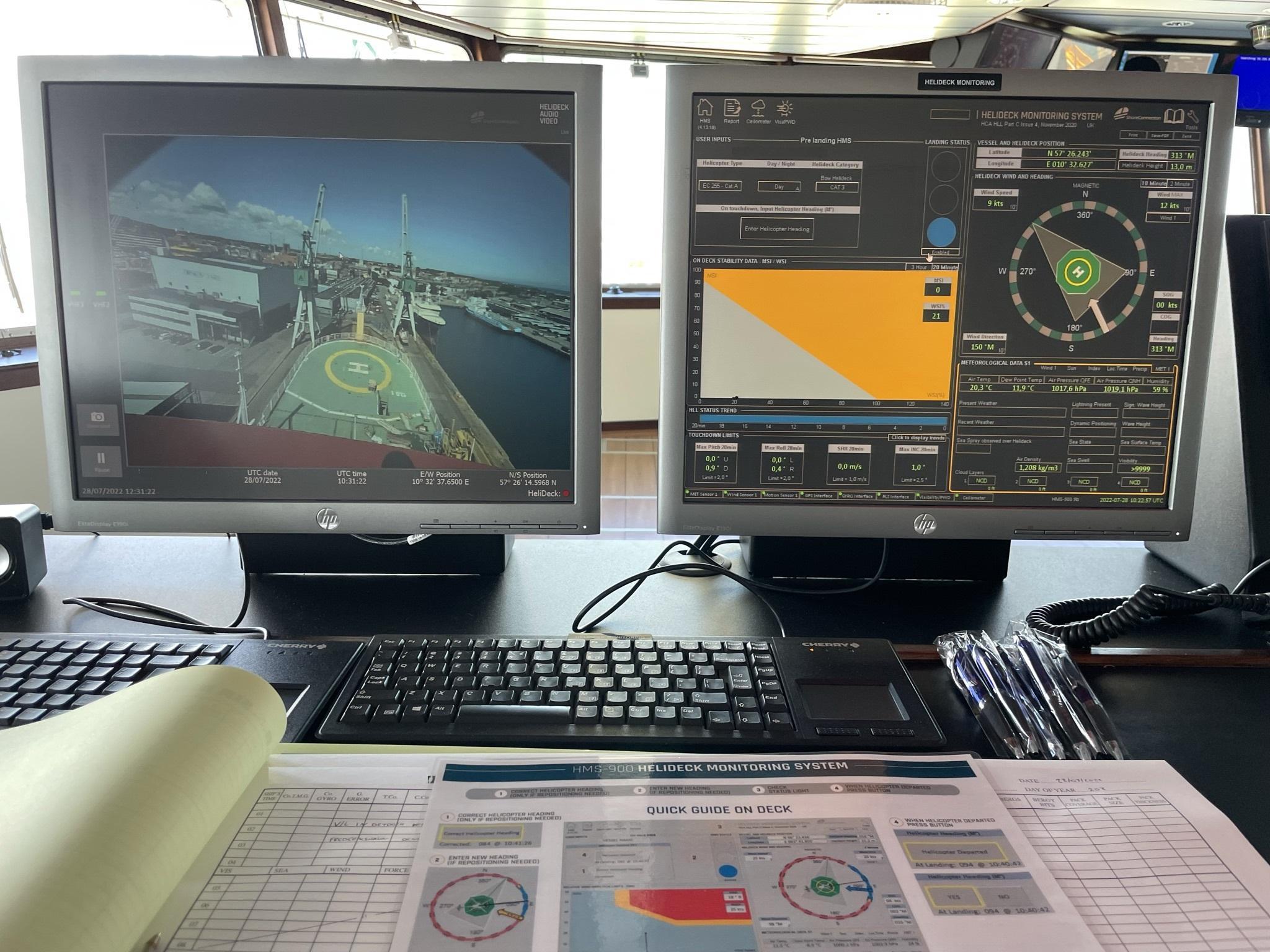

PRE-LANDING HMS Display
Before the helicopter lands HMS-900 displays the “Pre-landing” page on the Operators display.
HMS-900 processes the data and analyses the Motion Severity Index (MSI), Wind Severity Index (WSI) and displays the information through the Helideck Repeater Lights and they will display Blue / Amber / Red.
The meteorological parameters are displayed as specified in the CAP 437 requirements. The motion data is displayed as per the current HCA recommendations and the relation between the MSI and WSI is displayed in a graphical format.

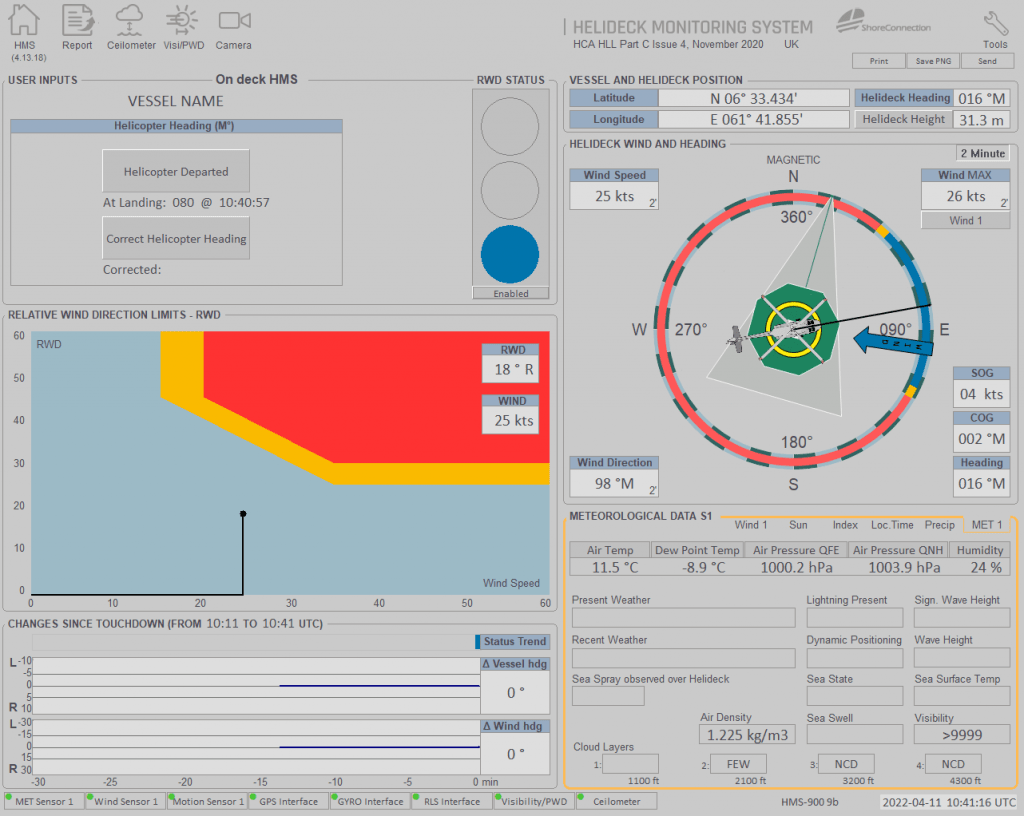

ON DECK HMS Display
After the helicopter has landed and preceding takeoff HMS-900 shows “On-Deck” page on the Operators display.
HMS-900 processes the data and analyses the Relative Wind Direction (RWD) and displays the information through the Helideck Repeater Lights and they will display flashing Blue / Amber / Red in accordance with the information received.
The controlling algorithm will also change, rather than the MSI/WSI the on stop light is now controlled by the wind direction relative to the helicopter and the wind speed. The other meteorological parameters needed to for a safe take off will still be displayed.
